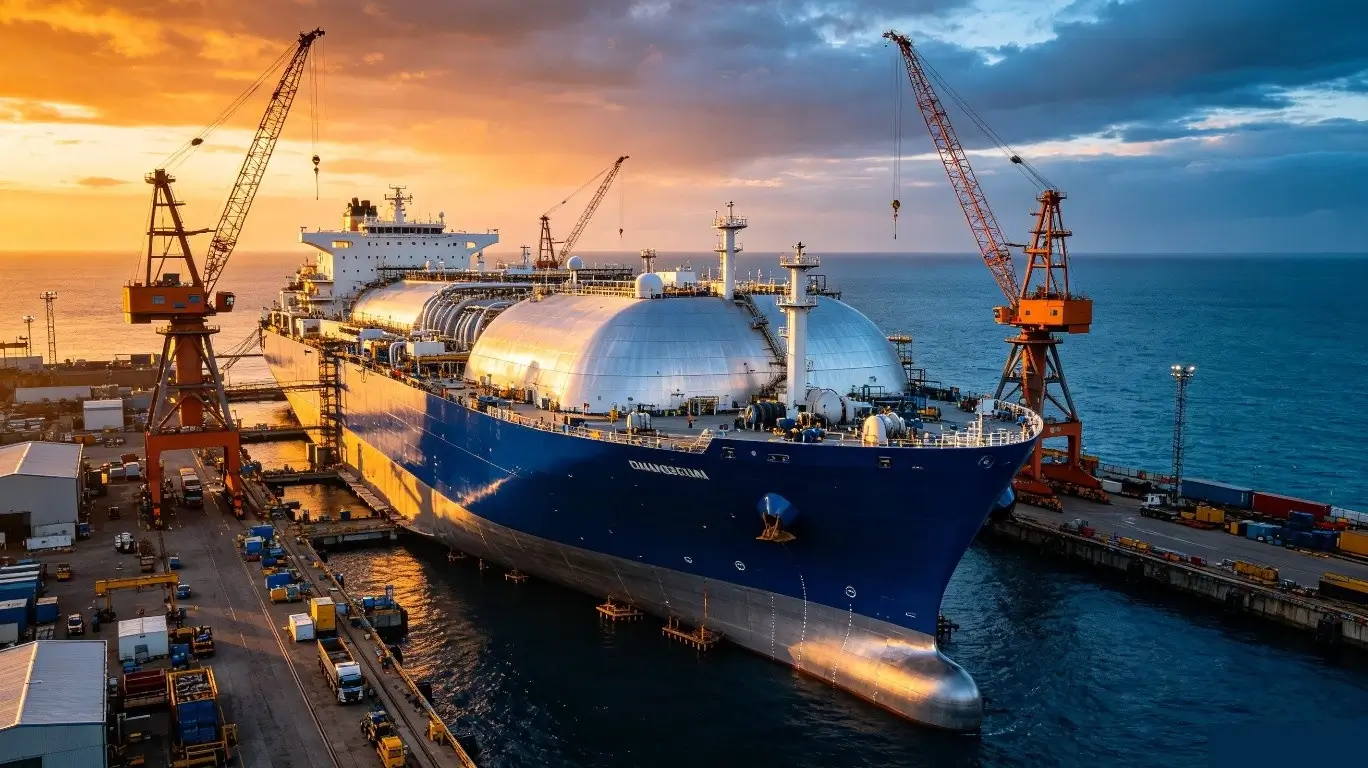

Modern Shipyard Facilities

Key equipment configuration
The key equipment of modern shipyards directly determines their construction capability and technological level.
Cutting equipment: CNC plasma/laser cutting machine, profile cutting machine, flame cutting machine
Forming equipment: large hydraulic press (pressure up to 2000-5000 tons), rib cold bending machine, rolling machine
Welding equipment: fully automatic submerged arc welding machine, CO ₂ gas shielded welding machine, robot welding workstation
Painting equipment: segmented painting workshop (equipped with exhaust gas treatment system), high-pressure airless spraying equipment
Lifting equipment: gantry crane (200-3000t), gantry crane, bridge crane, floating crane
🖥️ Digitization and Information Technology Facilities
The “soft power” of modern shipyards is reflected in their digital and information facilities.
CAD/CAM/CAE system: used for ship 3D modeling, finite element analysis, and production design
PDM/PLM System: Product Data and Lifecycle Management
ERP System: Enterprise Resource Planning Management
Digital Twin Technology: Achieving Virtual Construction and Process Simulation Optimization
Intelligent warehousing system: automated three-dimensional warehouse, AGV logistics system
🌱 Environmental protection and supporting facilities
Modern shipyards attach great importance to environmental protection and green production.
Wastewater treatment system: separate treatment of oily wastewater, domestic wastewater, and painting wastewater by quality
Exhaust gas treatment system: VOCs treatment system in the painting workshop (such as activated carbon adsorption+RTO), welding smoke purification
Solid waste treatment system: recycling and utilization of scrap steel, standardized disposal of hazardous waste
Clean energy facilities: distributed photovoltaic power generation, shore power system
Supporting power facilities: air compressor station, boiler room, transformer and distribution station
